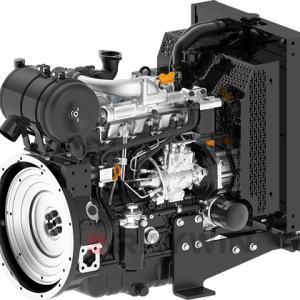

4F24TI – G-Drive

  /   4F24TI – G-Drive

Product introduction:
1. This motor is small in size and lightweight, so it can be installed and used in a small space;
2. Tunnel structure is adopted, so that the reliability of the motor is guaranteed and the noise is effectively controlled;
3. This engine features high torque and high torque reserve;
4. PTO output torque is large, and the hydraulic pump operates safely and reliably;
5. The layout of the oil filter and diesel filter is reasonable, so it is easy to disassemble and maintain;
6. Unique oil consumption technology ensures the oil consumption rate is lower than 0.15L/KW.h;
7. International brand fuel pump is used together with low friction technology to ensure lower fuel consumption and more.
Good speed adjustment; At the same time, the motor can be equipped with Weifu electronically controlled VP rotor pump, so that the speed regulation is within 1%;
8. The temperature of engine inlet and outlet water is lower than 6 degrees, which allows customers to have better terminal matching.

Kategoriler:

Açıklama

NO. Items Technical parameters
1 Engine model 4F24TIG11 4F24TIG10 4F24TIG03 4F24TIG02 4F24TIG01 4F24TIG00
2 Engine type In line 4 and 4 stroke,water cooled
3 Intake air system Turbointer cooling
4 Combustion type DI/ωshape
5 Bore×Stroke(mm) 4-87×103
6 Valve per cylinder 2
7 Displacement (L) 2.45
8 Compression ratio 19：1
9 Cylinder type No linner
10 Dry weight kg 240（Aftertreatment included/without radiator/without intercooler ）
11 (L×W×H）mm 917×586×728（Aftertreatment included/without radiator/without intercooler ）
12 Lubricating system pressure and splash lubrication
13 Cooling system Forced water cooling closed cycle
14 Start type Starting motor 12V 2.3kw
15 Alternator 14V 90A
16 Applicable regulations Off-Road Europe Stage V
17 Technical routing CR+EGR+DOC+DPF
18 FIE system High Pressure Common Rail((CR)
19 Oil capacity L 9.5（ upper limit）
20 Cooling liquid L 8.5（Including radiator and engine ）
22 Preheating system In-cylinder glow plug
23 Fire order 1—3—4—2
24 Crank Rotation CCW (from flywheel)
25 Prime power(kW)/speed（r/min) 37/1500 41/1500 37/1800 41/1800 46/1800 51/1800
26 Standby Power(kW)/speed（r/min） 40.7/1500 45/1500 40.7/1800 45/1800 50.6/1800 56/1800
27 Rated fuel consumption (g/kw· h) ≤230 ≤230 ≤230 ≤230 ≤230 ≤230
28 Speed drop % 1%
29 Governor system E-Governor
30 Oil consumption(g/kW·h) ≤0.2
31 Fuel type Summer：A product0#,10#lightdiesel. Winter：A product0#,-10#,-20#,-35#lightdiesel .
32 Oil type It is recommended to use Yuchai special engine oil with aquality grade of CF-4.
33 Ambient operating temperatures （°C） -30~45
34 Maximum allowable inlet resistance kPa 5
35 Maximum allowable exhaust resistance kPa 20
36 Smokeintensityofstandardoperating condition FSN ≤2
37 Voltage V 12
